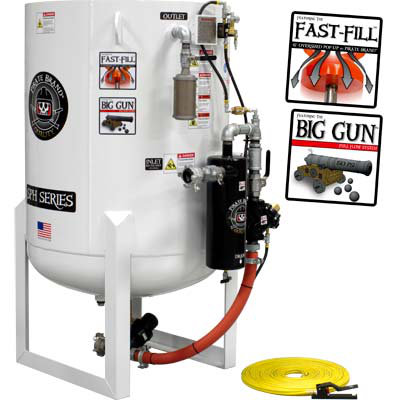

20 CU.FT. Industrial Blast Pot Package

$21,120.00

ABRASIVE BLAST POT / SANDBLASTING MACHINE,STATIONARY, 20.0 CU. FT. (570 LITERS),SINGLE OUTLET, 150 PSI (10.3 BAR), PRESSURE HOLD SYSTEM, PNEUMATIC, 65″ OAH, INCL: 11″ UMBRELLA, 6″ FAST-FILL(TM) POP-UP, APV II W/TC SLEEVE/AUTO AIR VALVE, BIG GUN FULL FLOW SYSTEM, UNION END BALL VALVE, 1-1/2″ PIPING W/BIG GUN MOISTURE SEPARATOR, 110′ TWINLINE ASSY & CONTROL HANDLE #2

A. 20.0 CU. FT. CAPACITY (570 LITERS)

1. 150 PSI VESSEL (10.3 BAR)
2. A.S.M.E. SECTION VIII DIVISION 1
3. C.R.N. FOR ALL PROVINCES
B. PRESSURE HOLD SYSTEM
1. REDUCES ABRASIVE CONSUMPTION
2. REDUCES MOISTURE PROBLEMS
3. SMOOTHER STARTS & STOPS
C. BIG GUN FULL FLOW SYSTEM PROVIDES
1. A ZERO PRESSURE DROP PATH FOR AIR & ABRASIVE TO TRAVEL TO THE BLAST NOZZLE FOR EVERY 1 PSI GAINED OR LOST IN ABRASIVE BLASTING = 1.5% PRODUCTION
2. A MUST FOR #7 & #8 NOZZLES
3. PREMIUM APVII ABRASIVE METERING VALVE STANDARD
4. FULL PORT COUPLING BLAST HOSE CONNECTION PROVIDES AN UNRESTRICTED PATH FOR AIR & ABRASIVE TO TRAVEL TO THE NOZZLE
D. BIG GUN 350 CFM HEAVY DUTY MOISTURE SEPARATOR
E. 1-1/2″ GALVANIZED PIPING FOR CORROSION RESISTANCE
F. HEAVY DUTY FULL PORT BALL VALVES
G. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
H. BOLT CLAMPS ON PUSHER LINE MAKE FIELD REPAIRS EASIER
I. NORMALLY CLOSED VALVES
1. AUTOMATIC PLUNGER VALVE II (APVII) PREMIUM ABRASIVE METERING VALVE WITH QUADRUPLE PLUNGER SEAL ARRANGEMENT SOLVES THE AIR & ABRASIVE CARRY OVER PROBLEM AS WELL AS THE PLUNGER & SEAL JAMMING PROBLEM NORMALLY ASSOCIATED WITH REGULATED LOW PRESSURE BLASTING APPLICATIONS AND OR THE USE OF STEEL ABRASIVE.  SOLID MACHINED TUNGSTEN CARBIDE PLUNGER & SLEEVE PROVIDES FAR SUPERIOR WEAR RATES AND 100% CONSISTENT TOLERANCES.  1″ NPT CLEANOUT PORT GIVES ACCESS TO OBSTRUCTIONS THAT MAY BE BRIDGING OVER THE METERING PORT ALSO ALLOWS YOU TO DRAIN THE VESSEL WITHOUT REMOVING THE VALVE.
2. FULL FLOW AUTO AIR VALVE FOR FAST STARTS & STOPS
3. HEAVY DUTY FILTERED CONTROL VALVE REDUCES STOPPING TIME WHEN CONTROL HANDLE IS RELEASED
4. RELIEVING CONTROL HANDLE REDUCES AIR CONSUMPTION AND REDUCES STOPPING TIMES WHEN CONTROL HANDLE IS RELEASED
J. BLOW DOWN MUFFLER REDUCES UNNECESSARY LOUD NOISE
K. 11″ ADJUSTABLE SPIDER
1. FULLY ADJUSTABLE FOR DIFFERENT MEDIA TYPES & SIZES
2. WHEN ABRASIVE IS HOPPER FEED FROM ABOVE THIS KEEPS THE WEIGHT OF THE ABRASIVE OFF THE POP-UP ALLOWING IT TO CLOSE & SEAL PROPERLY
L. 6″ FAST-FILL POP-UP &SKIRTED POP-UP GASKET
1. LARGER 6″ FAST-FILL POP-UP SIGNIFICANTLY REDUCES FILL TIMES
2. SKIRTED POP-UP GASKET BY DESIGN WILL KNIFE ITS WAY THROUGH THE ABRASIVE TO ASSIST IN SEALING
3. HELPS WITH THE ABRASIVE BURPING PROBLEM THAT IS COMMONLY SEEN WITH HOPPER FEED BLAST POTS
4. A MUST WHEN USING LARGE GRIT SIZES
M. UNION END BALL VALVES
1. ALLOW YOU TO SHUT OFF THE ABRASIVE AT THE BOTTOM OF THE POT FOR MAINTENANCE OR REPAIRING THE ABRASIVE METERING VALVE WITHOUT DUMPING THE ENTIRE VESSEL OF ABRASIVE ON THE FLOOR
N. FULL LOAD LIFTING EYES
1. ALLOW LIFTING AND TRANSPORTATION OF VESSEL FOR P

SKU: 20IBPP110719 Category:

Description

ABRASIVE BLAST POT / SANDBLASTING MACHINE,STATIONARY, 20.0 CU. FT. (570 LITERS),SINGLE OUTLET, 150 PSI (10.3 BAR), PRESSURE HOLD SYSTEM, PNEUMATIC, 65″ OAH, INCL: 11″ UMBRELLA, 6″ FAST-FILL(TM) POP-UP, APV II W/TC SLEEVE/AUTO AIR VALVE, BIG GUN FULL FLOW SYSTEM, UNION END BALL VALVE, 1-1/2″ PIPING W/BIG GUN MOISTURE SEPARATOR, 110′ TWINLINE ASSY & CONTROL HANDLE #2

A. 20.0 CU. FT. CAPACITY (570 LITERS)

1. 150 PSI VESSEL (10.3 BAR)
2. A.S.M.E. SECTION VIII DIVISION 1
3. C.R.N. FOR ALL PROVINCES
B. PRESSURE HOLD SYSTEM
1. REDUCES ABRASIVE CONSUMPTION
2. REDUCES MOISTURE PROBLEMS
3. SMOOTHER STARTS & STOPS
C. BIG GUN FULL FLOW SYSTEM PROVIDES
1. A ZERO PRESSURE DROP PATH FOR AIR & ABRASIVE TO TRAVEL TO THE BLAST NOZZLE FOR EVERY 1 PSI GAINED OR LOST IN ABRASIVE BLASTING = 1.5% PRODUCTION
2. A MUST FOR #7 & #8 NOZZLES
3. PREMIUM APVII ABRASIVE METERING VALVE STANDARD
4. FULL PORT COUPLING BLAST HOSE CONNECTION PROVIDES AN UNRESTRICTED PATH FOR AIR & ABRASIVE TO TRAVEL TO THE NOZZLE
D. BIG GUN 350 CFM HEAVY DUTY MOISTURE SEPARATOR
E. 1-1/2″ GALVANIZED PIPING FOR CORROSION RESISTANCE
F. HEAVY DUTY FULL PORT BALL VALVES
G. EXTENDED LIFE SCHEDULE 80 HEAVY DUTY NIPPLE
1. WITHSTANDS ABRASIVE WEAR FOR LONGER LIFE
H. BOLT CLAMPS ON PUSHER LINE MAKE FIELD REPAIRS EASIER
I. NORMALLY CLOSED VALVES
1. AUTOMATIC PLUNGER VALVE II (APVII) PREMIUM ABRASIVE METERING VALVE WITH QUADRUPLE PLUNGER SEAL ARRANGEMENT SOLVES THE AIR & ABRASIVE CARRY OVER PROBLEM AS WELL AS THE PLUNGER & SEAL JAMMING PROBLEM NORMALLY ASSOCIATED WITH REGULATED LOW PRESSURE BLASTING APPLICATIONS AND OR THE USE OF STEEL ABRASIVE.  SOLID MACHINED TUNGSTEN CARBIDE PLUNGER & SLEEVE PROVIDES FAR SUPERIOR WEAR RATES AND 100% CONSISTENT TOLERANCES.  1″ NPT CLEANOUT PORT GIVES ACCESS TO OBSTRUCTIONS THAT MAY BE BRIDGING OVER THE METERING PORT ALSO ALLOWS YOU TO DRAIN THE VESSEL WITHOUT REMOVING THE VALVE.
2. FULL FLOW AUTO AIR VALVE FOR FAST STARTS & STOPS
3. HEAVY DUTY FILTERED CONTROL VALVE REDUCES STOPPING TIME WHEN CONTROL HANDLE IS RELEASED
4. RELIEVING CONTROL HANDLE REDUCES AIR CONSUMPTION AND REDUCES STOPPING TIMES WHEN CONTROL HANDLE IS RELEASED
J. BLOW DOWN MUFFLER REDUCES UNNECESSARY LOUD NOISE
K. 11″ ADJUSTABLE SPIDER
1. FULLY ADJUSTABLE FOR DIFFERENT MEDIA TYPES & SIZES
2. WHEN ABRASIVE IS HOPPER FEED FROM ABOVE THIS KEEPS THE WEIGHT OF THE ABRASIVE OFF THE POP-UP ALLOWING IT TO CLOSE & SEAL PROPERLY
L. 6″ FAST-FILL POP-UP &SKIRTED POP-UP GASKET
1. LARGER 6″ FAST-FILL POP-UP SIGNIFICANTLY REDUCES FILL TIMES
2. SKIRTED POP-UP GASKET BY DESIGN WILL KNIFE ITS WAY THROUGH THE ABRASIVE TO ASSIST IN SEALING
3. HELPS WITH THE ABRASIVE BURPING PROBLEM THAT IS COMMONLY SEEN WITH HOPPER FEED BLAST POTS
4. A MUST WHEN USING LARGE GRIT SIZES
M. UNION END BALL VALVES
1. ALLOW YOU TO SHUT OFF THE ABRASIVE AT THE BOTTOM OF THE POT FOR MAINTENANCE OR REPAIRING THE ABRASIVE METERING VALVE WITHOUT DUMPING THE ENTIRE VESSEL OF ABRASIVE ON THE FLOOR
N. FULL LOAD LIFTING EYES
1. ALLOW LIFTING AND TRANSPORTATION OF VESSEL FOR PLACEMENT MAINTENANCE OR REPAIR
