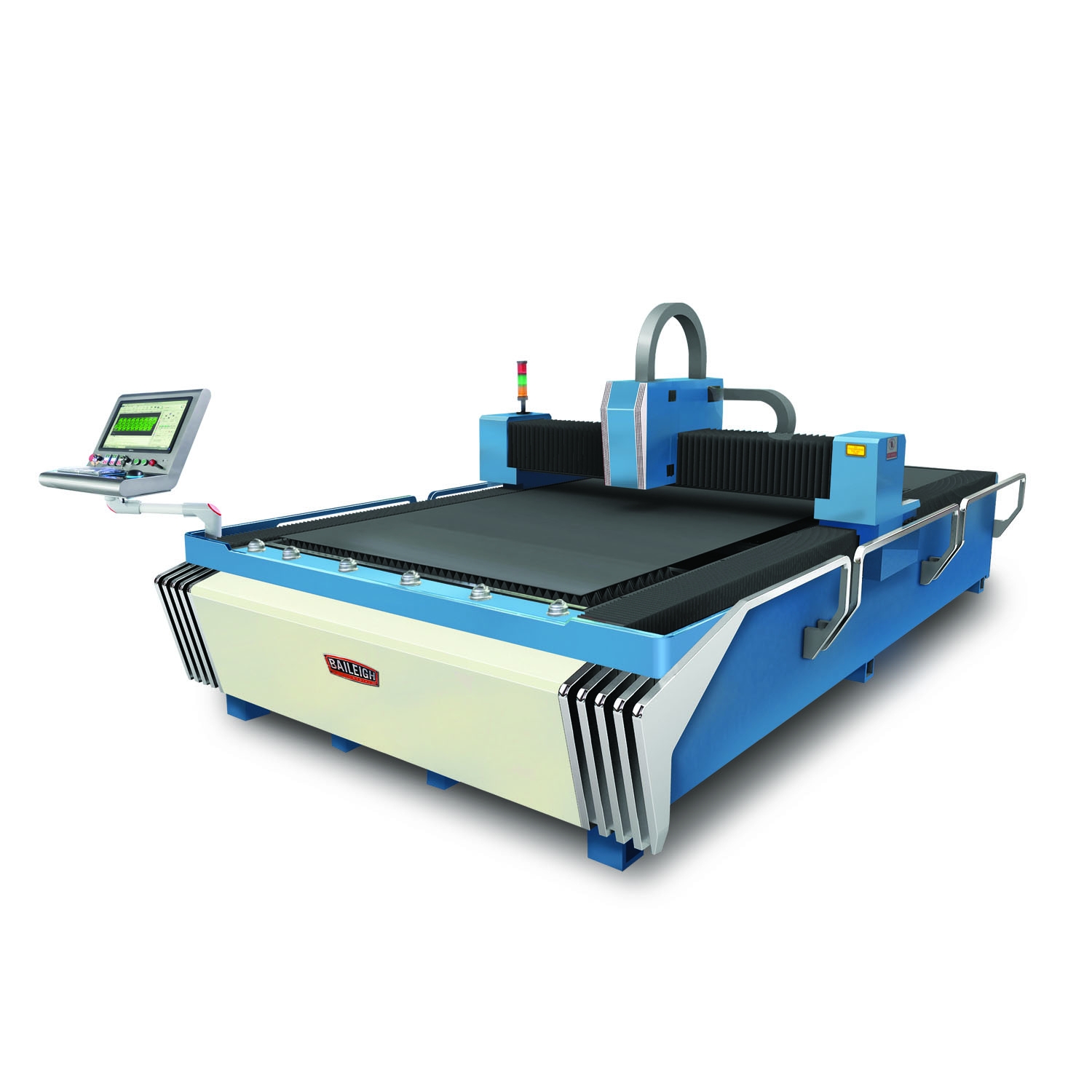

CNC Laser Table FL-510HD-1000

$104,396.00

DESCRIPTION

Our Laser CNC Table – FL-510HD-1000 has the structural strength to handle 5’ x 10’ sheets. Its 1000 watt fiber laser is ideal for production runs. It arrives fully assembled and comes with software.



  • Efficient 1000 watt fiber laser

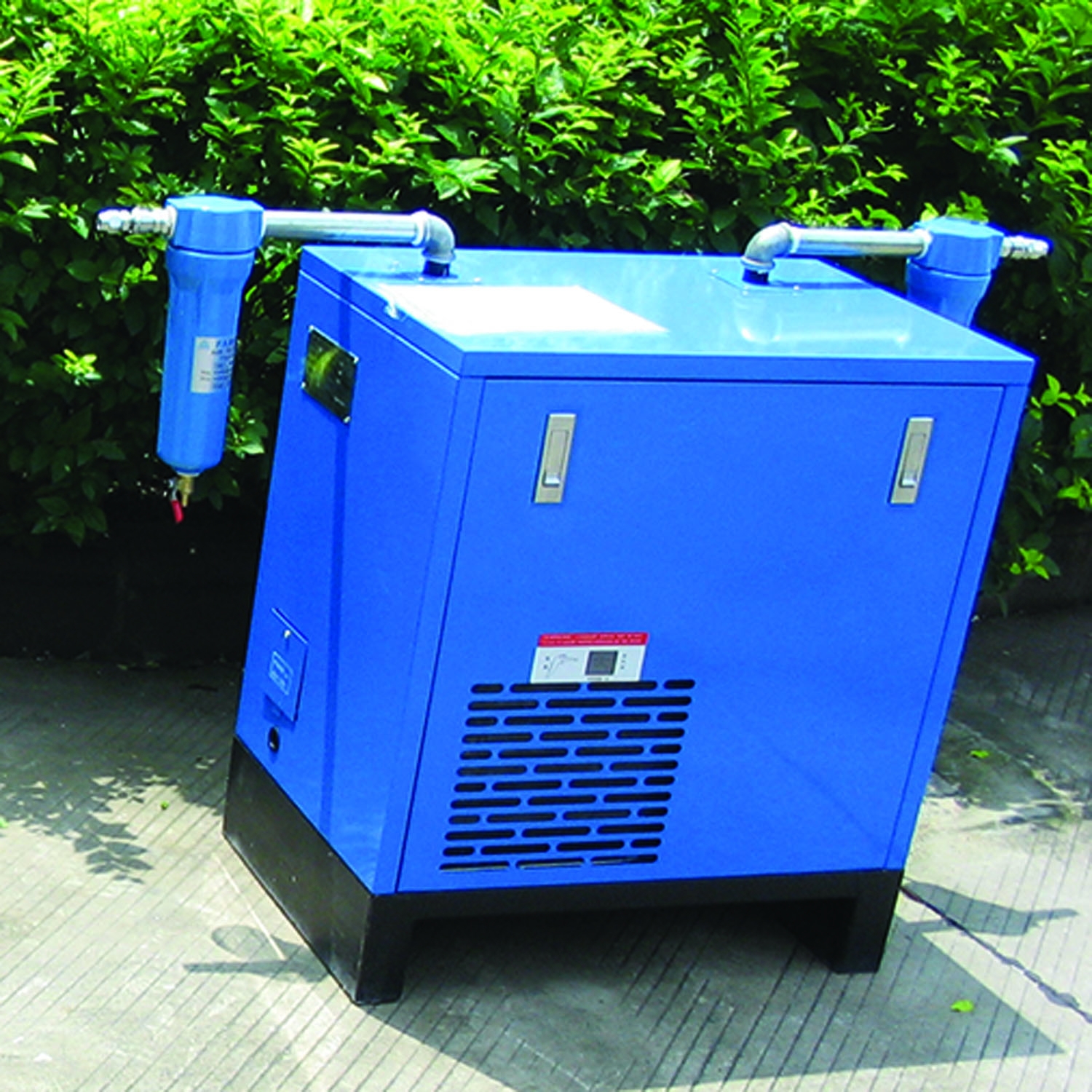

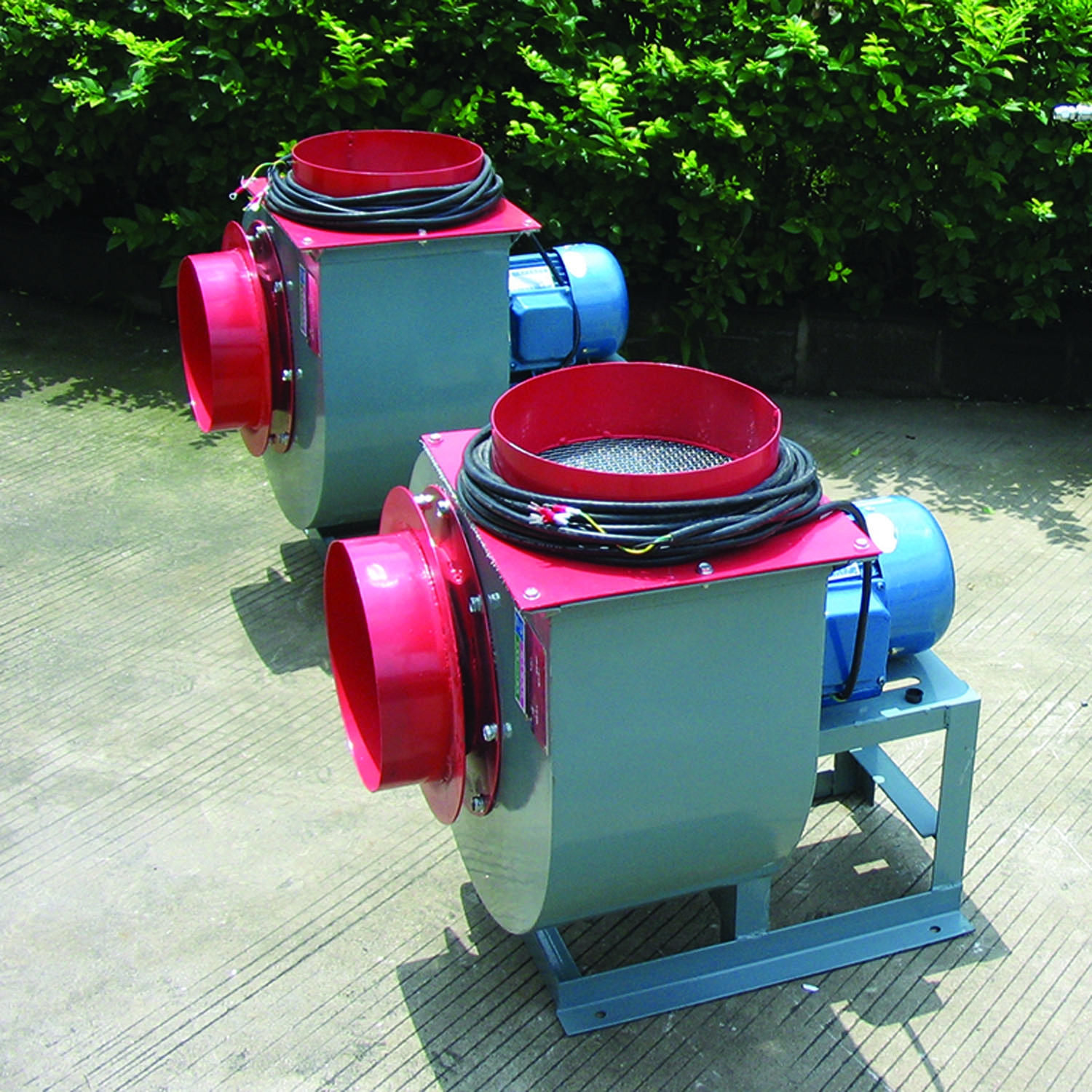

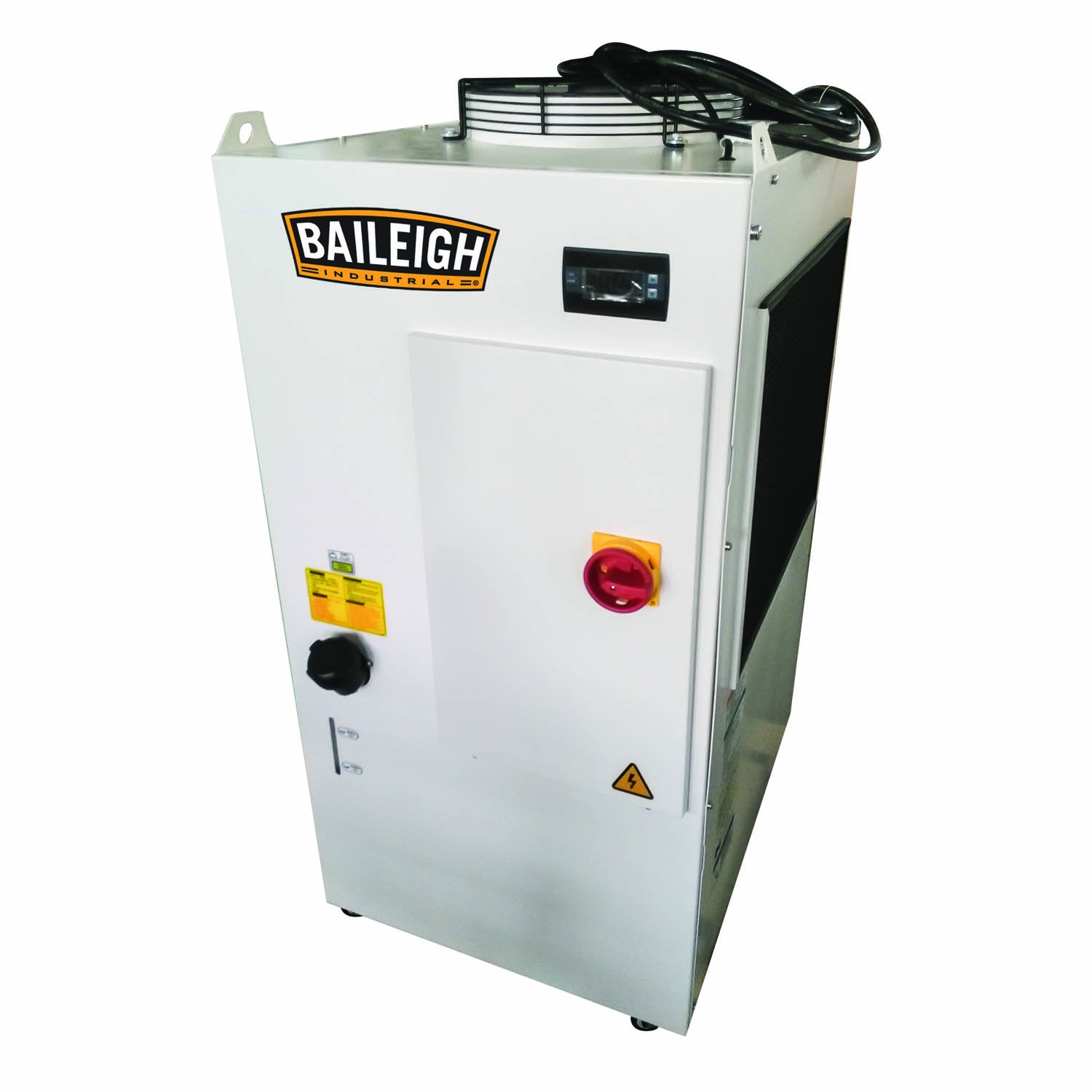

  • Includes chiller, air dryer and exhaust system
  • Runs on 220-volt three-phase power.
  • Control nearly all functions of the table with a Windows based PC from the sturdy podium featuring a 17” Dell® monitor, wireless keyboard, and mouse.
  • Includes easy-to-learn design software that you can load into any basic PC (more details below).
  • Delta® brushless servo motors, controlled by Delta® servo motion controllers, drive the gantry.
  • Industrial-grade gantry travel system for the X, Y & Z axis made from extremely rigid extruded aluminum.
  • Gantry can move out of the way for a full 10-foot sheet during loading, minimizing the chance of machine damage.
  • High gantry (one of the highest in the industry) lets you clearly see its movement for better adjustment and control.
  • Axes ride on heavy-duty ground and polished square shafts.
  • Wiper dies on shafts keep welding dust out of the slide for a smooth transfer without noisy friction caused by dirt build-up.
  • Our design reduces the risk of damaging the table while loading or pinching your forklift.
  • Weigh an impressive 6600 lbs.
  • Fully-welded boxed tubing construction can easily support the weight of maximum capacity material.
  • Steel framework will hold its shape and stay accurate for decades, unlike many competitors’ aluminum frames, which buckle and warp under heat.
  • Pre-built table saves you time and effort. The alignment is already set up and correct when it arrives.
  • The table features pneumatic material clamps and assist rollers.
  • The CNC Laser Table – FL-510HD-1000 comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the laser table via a USB drive.

SPECIFICATIONS

Item Number FL-510HD-1000
Max. Material Thickness .314″
Rated Output 1000 watts
Travel Speed 2,600 Inches Per Minute
Table Dimensions 9.8′ x 4.9′
Cooling System Water
Drive Servo Motor
Power 220V 3-phase
Shipping Weight 9000lbs
Type of Laser Fiber
Laser Wavelength 1025 – 1080nm
Laser Input Power N/A (Wired into the Table)
Minimum Cutting Width ~.005″
Software BobCAD Cam Express
Special Notes Includes Chiller and Air Dryer
Shipping Dimensions (Inches) 180x94x90

* specifications subject to change without notice.
