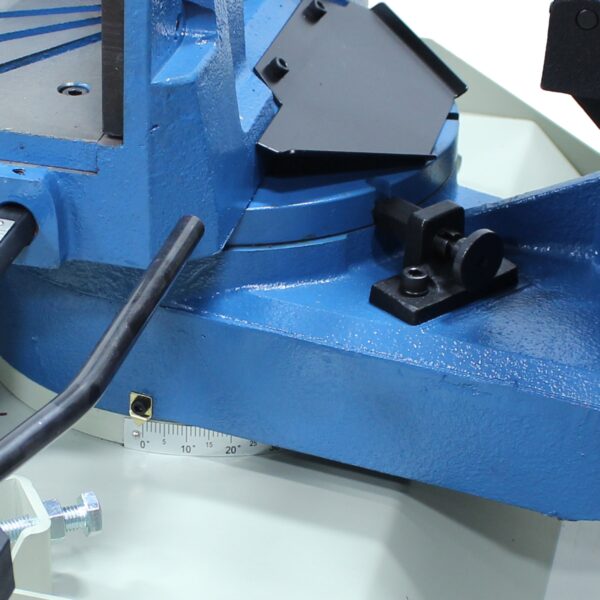

Need to cut at multiple angles in both directions? This dual-mitering band saw has a cast iron head and bow that can swivel 60° right and 45° left.

• 10.5” round capacity at 90°.
• Runs on 220-volt single-phase power. You can use the dual miter band saw just about anywhere.

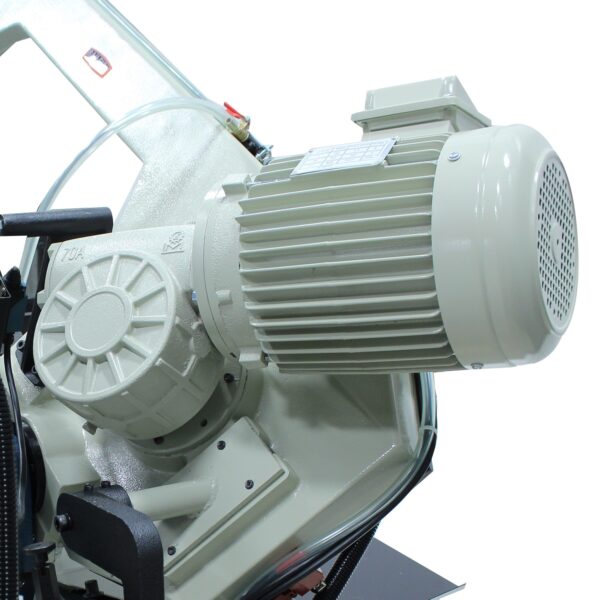

• 2 hp motor, driven by an AC inverter, makes the machine reliable.
• Direct-drive gearbox saves you the trouble of adjusting pulleys or replacing broken belts!
• Cast iron head and bow, machined to exacting tolerances, reduce vibration and deliver the straightest, highest quality cuts on the market.
• 1” blade width.
• Variable speed control, from 66- 280 fpm, lets you select the speed to suit your material and application.

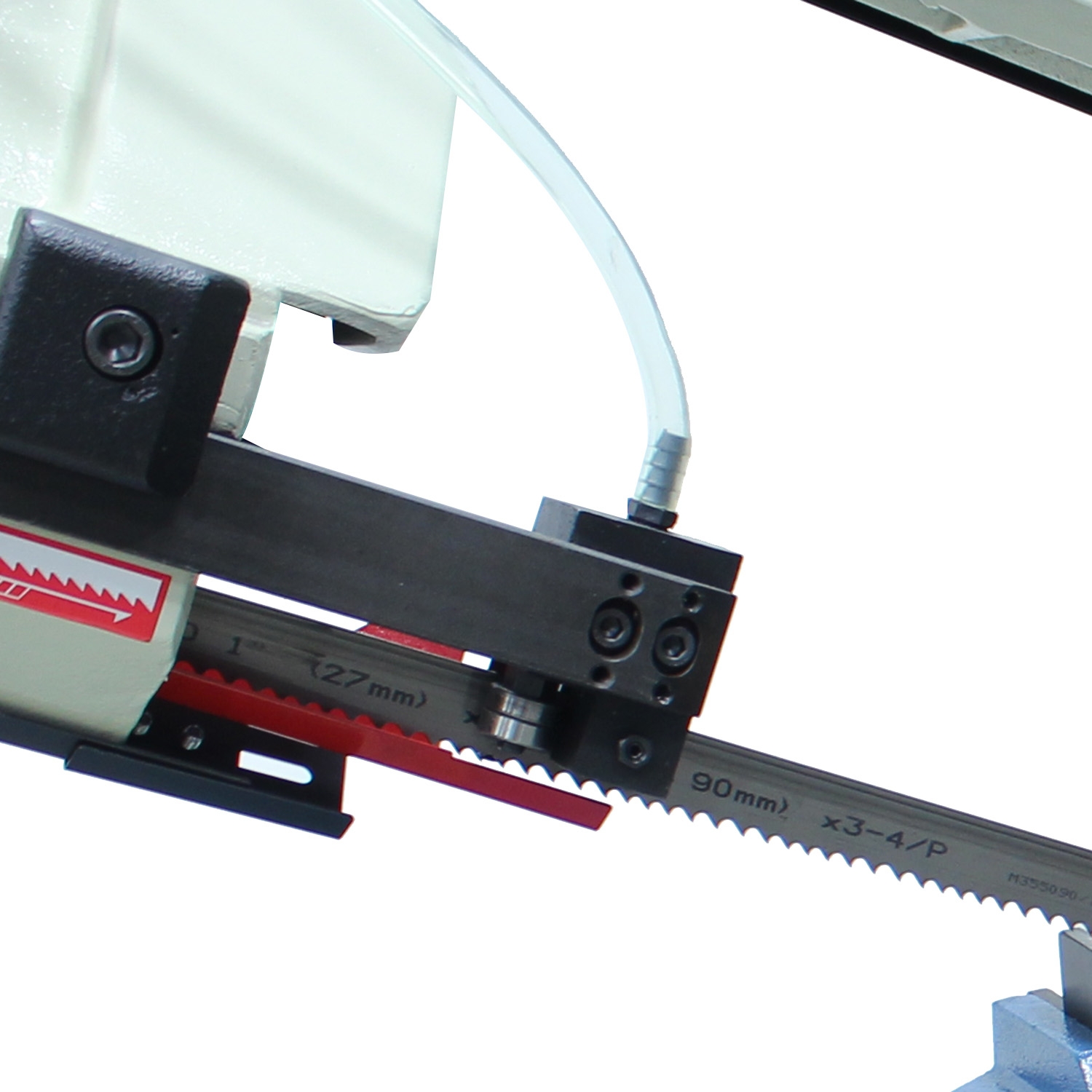

• Ball bearing blade guides help you get the blade as close to the material as possible to make accurate cuts, ensuring long blade life.

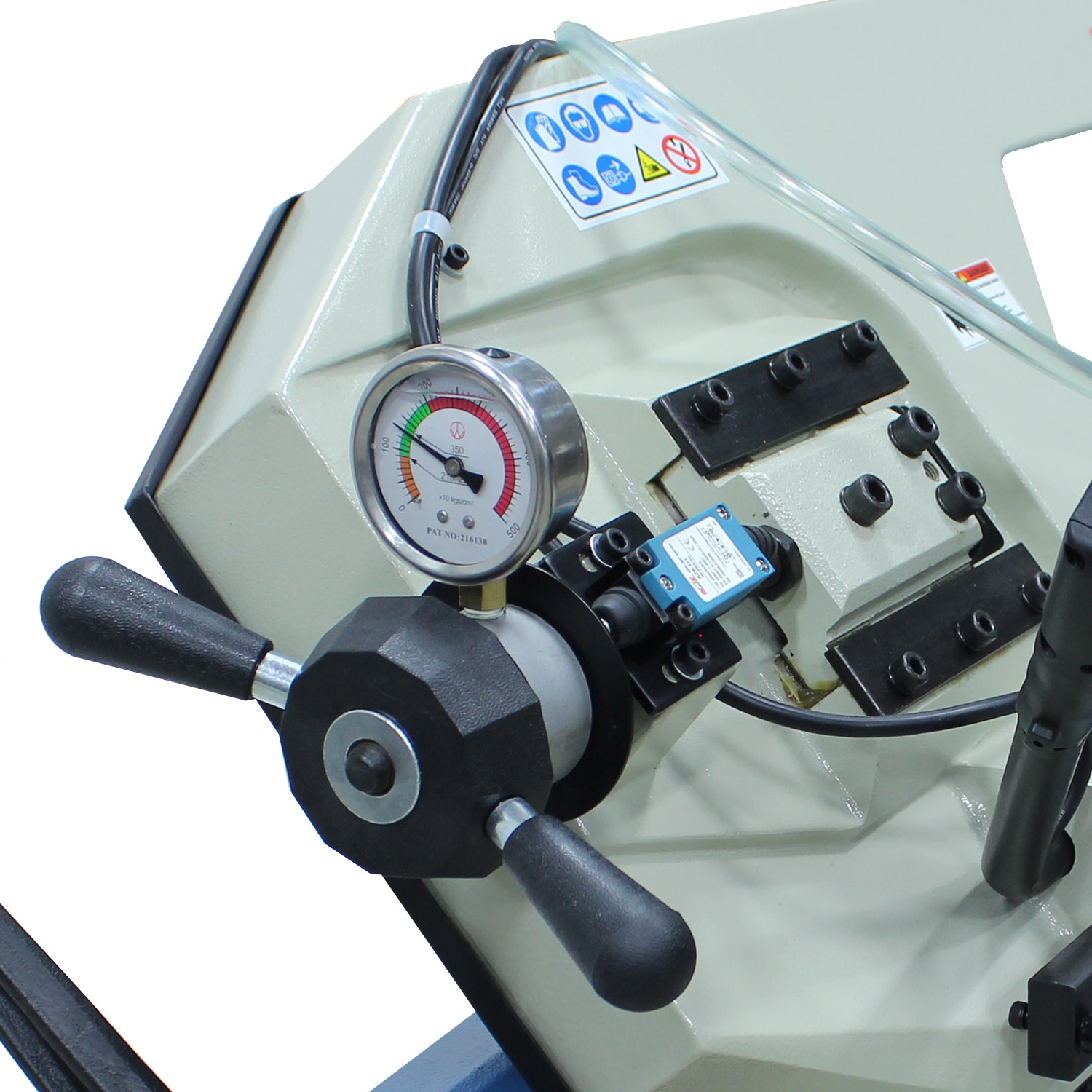

• Patented blade tension device, a liquid-filled gauge, makes it easy to check and adjust the tension.

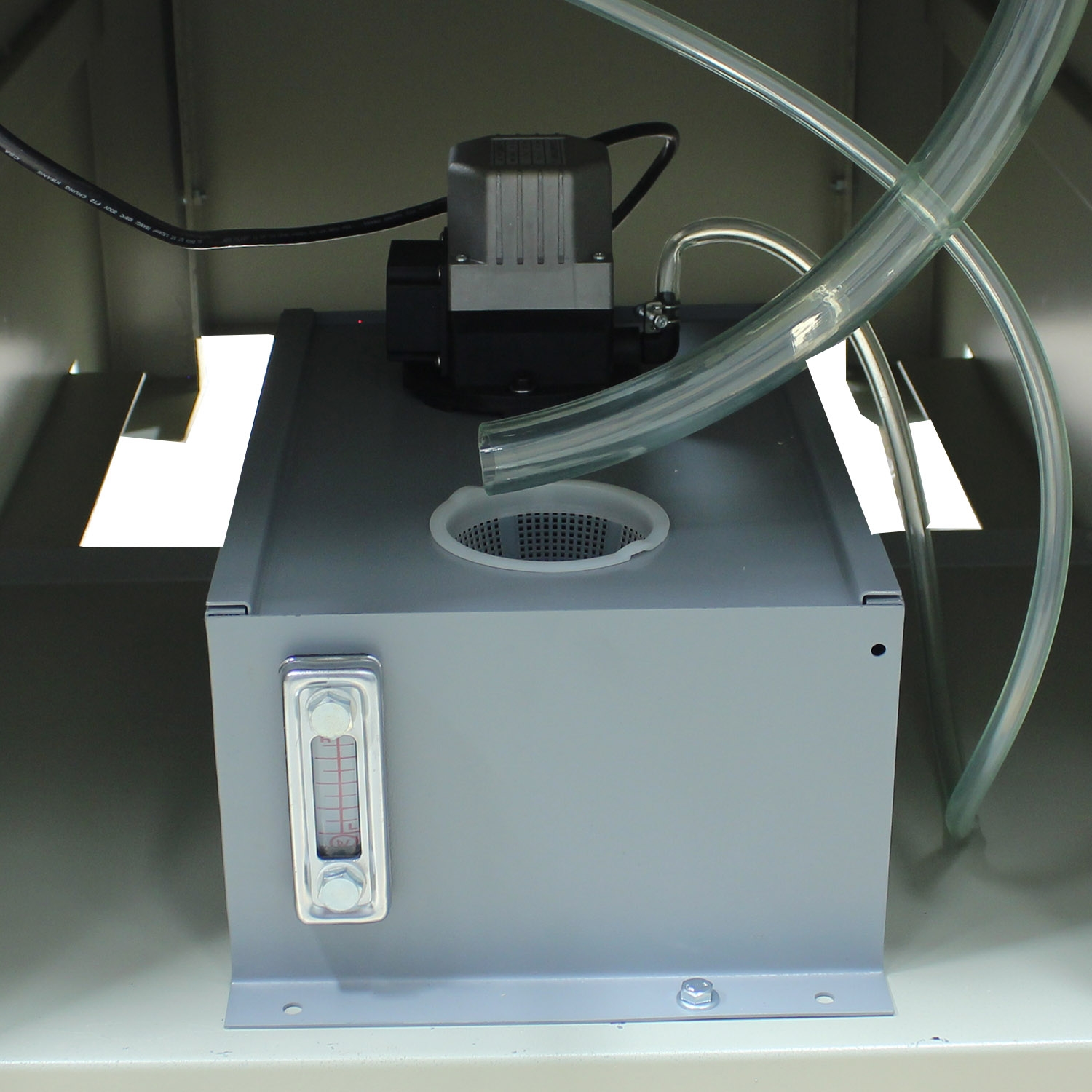

• Comes standard with a flood coolant system to wash away metal chips and help blades last longer.

Modes of operation:

• Choose between 2 modes of operation, manual or hydraulic descent, depending on your preference and project.
• Manual descent mode:
  • For small production runs.
  • Perfect for small or medium sized fabricators’ needs.
  • Turn on the machine via a trigger switch in the descent handle.
  • Manually guide the band saw blade through the material.

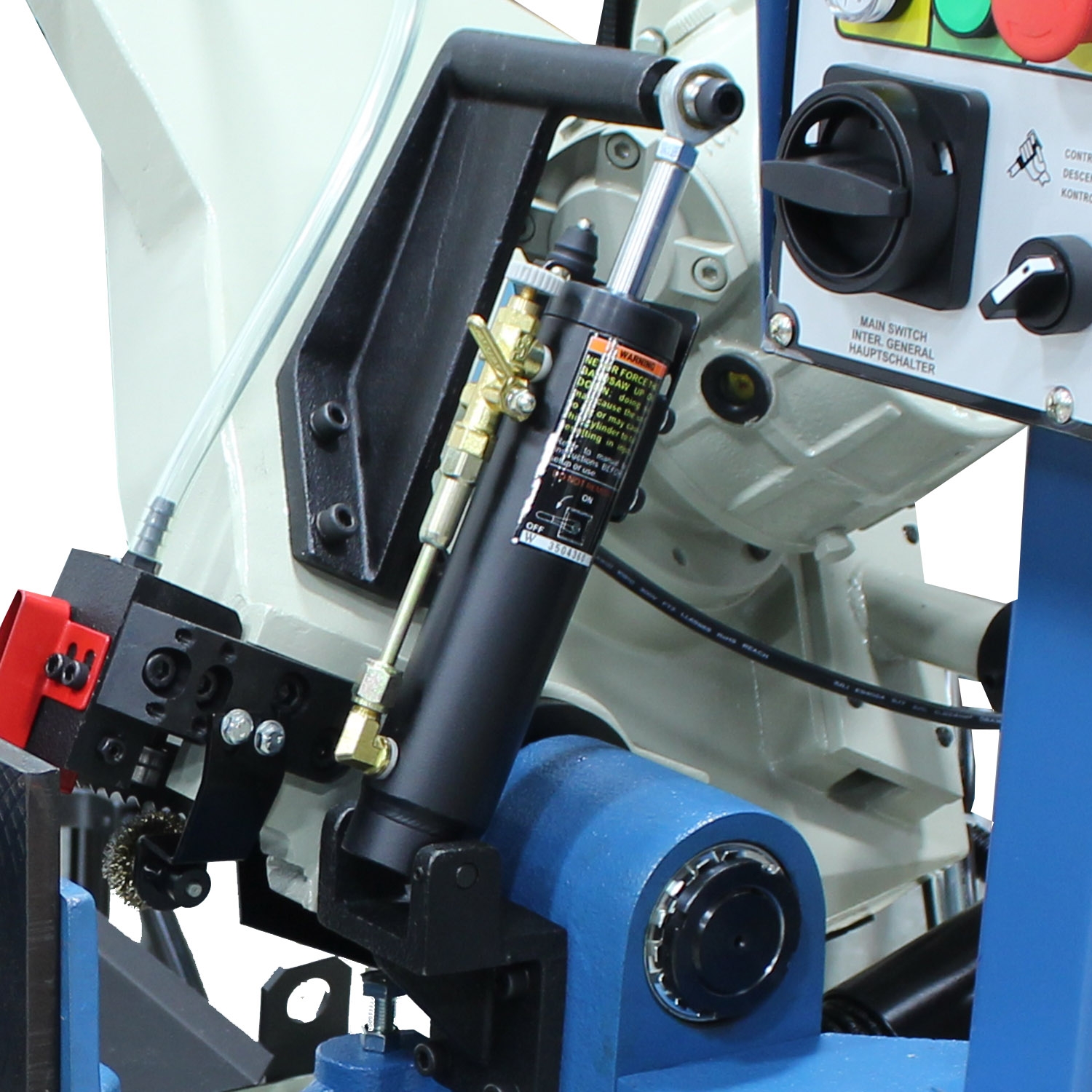

• Hydraulic descent mode:
  • For larger production runs.
  • Increases blade life and reduces operator fatigue.
  • Downfeed adjustment for feed pressure.

SPECIFICATIONS

* specifications subject to change without notice.
