DESCRIPTION

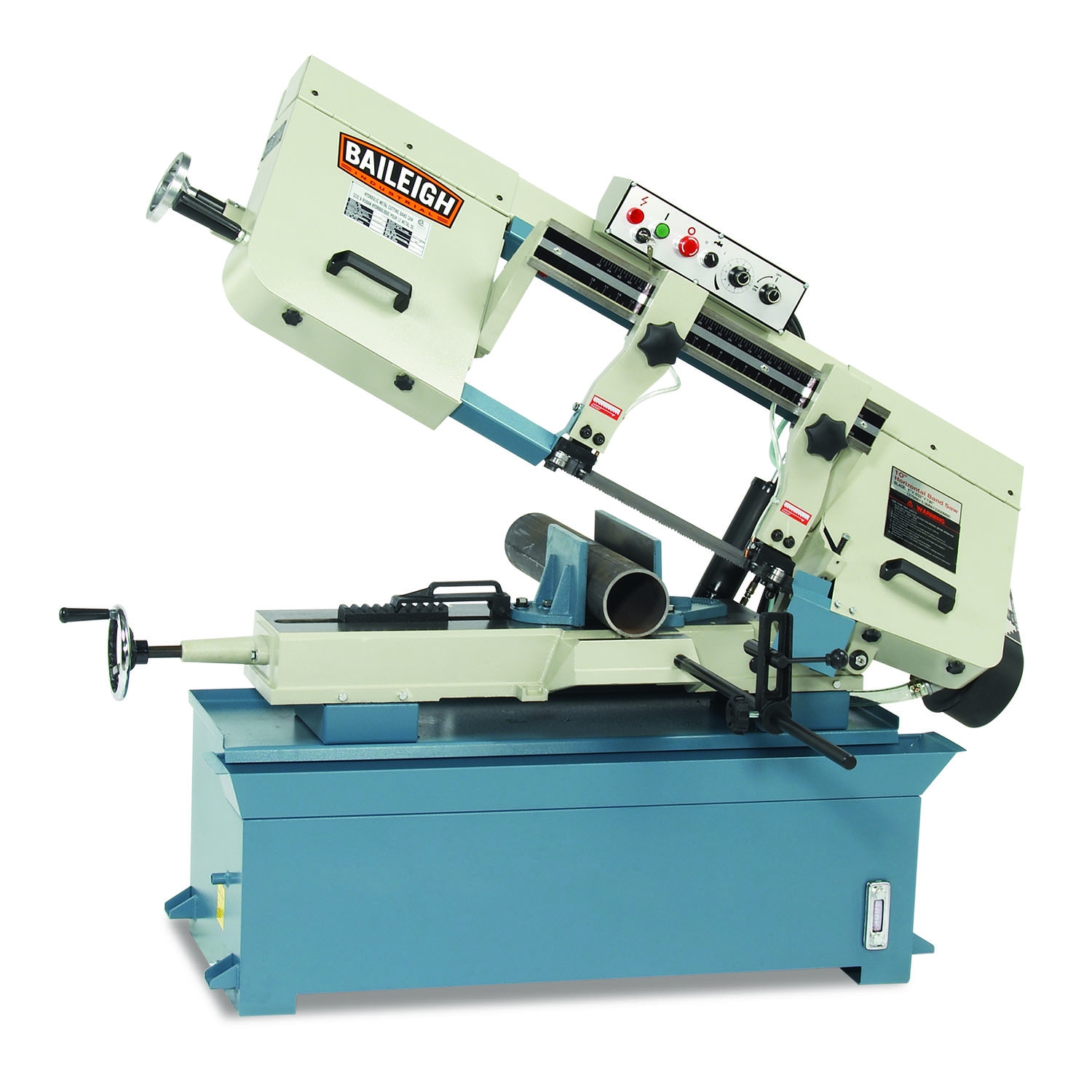

Do you love old-time American-style band saws—and how well they handle? The variable-speed, horizontal band saw band saw BS-300M updates that sturdy design with time-saving features.
- 2 hp motor runs on 240-volt single-phase power, so any shop can reap the benefits of this saw.
- 9.75” round maximum capacity at 90°.
- Cuts almost anything that you can throw at it, including many different shapes and profiles of metal.

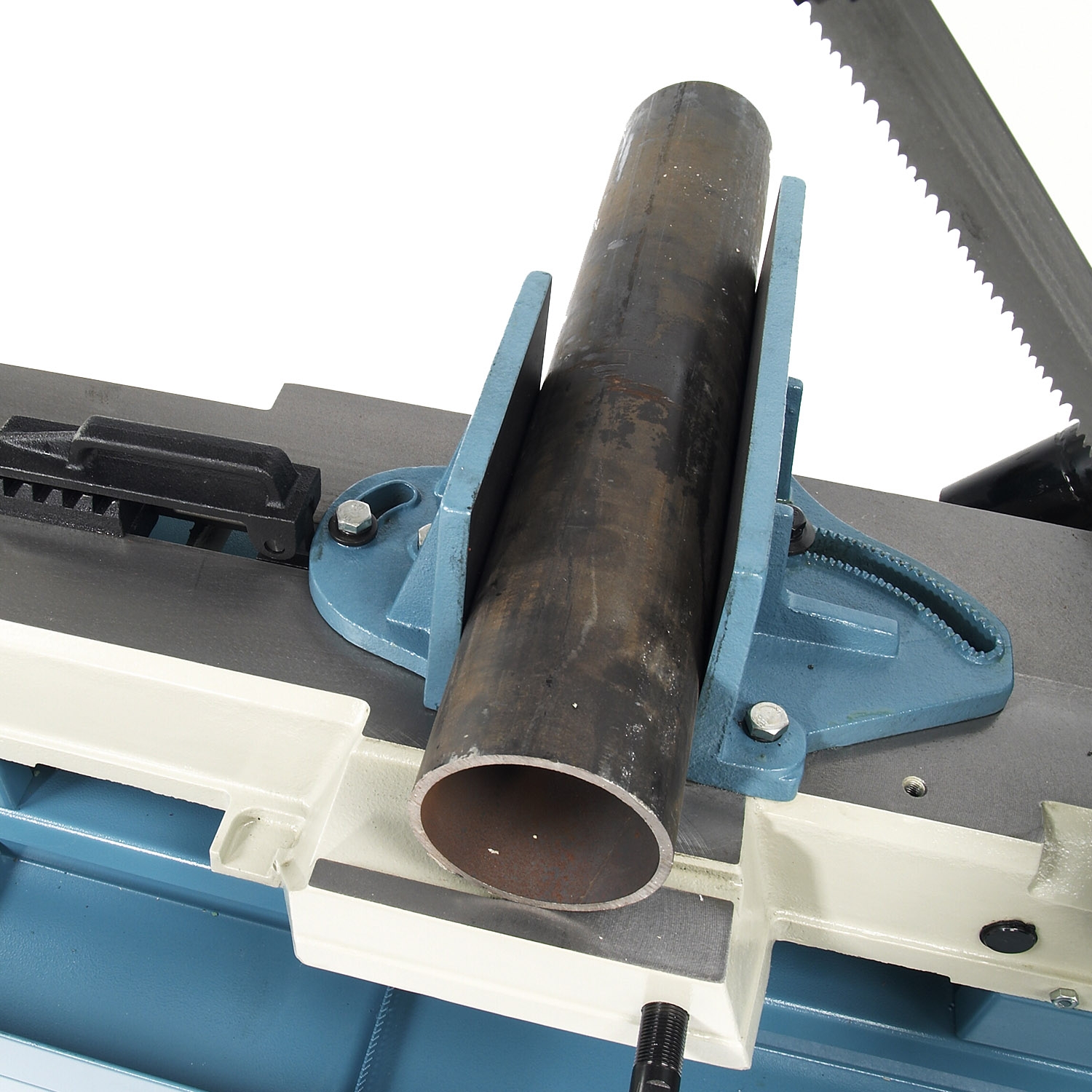

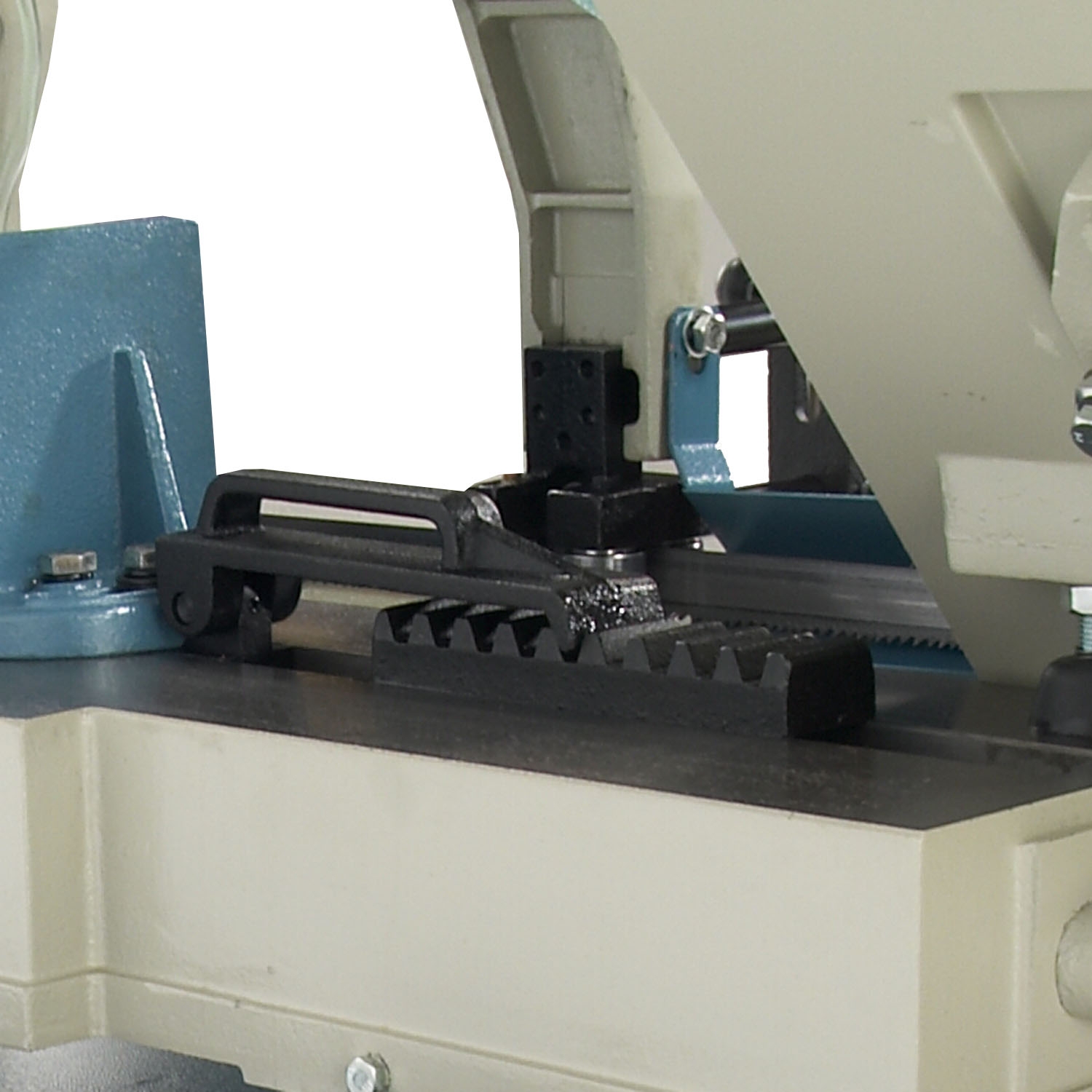

- Vise miters up to 45°.
- Standard 1” blade width.

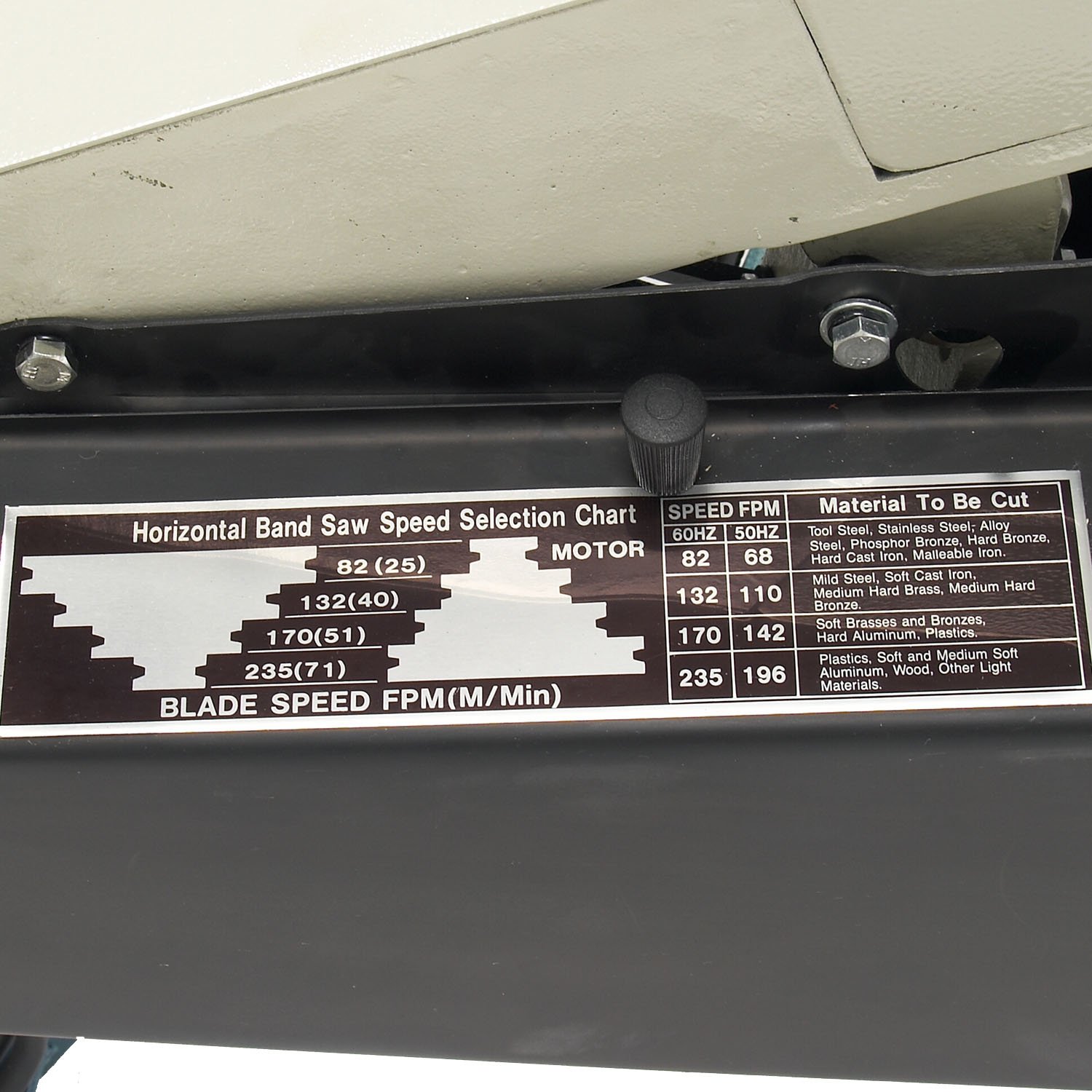

- 4 cutting speeds (82, 131, 167, 233 fpm) allow you to fine-tune the saw for better cut quality.
- Includes our patented blade tension device: a liquid-filled gauge that makes it easy to check whether or not your blade is properly tensioned.

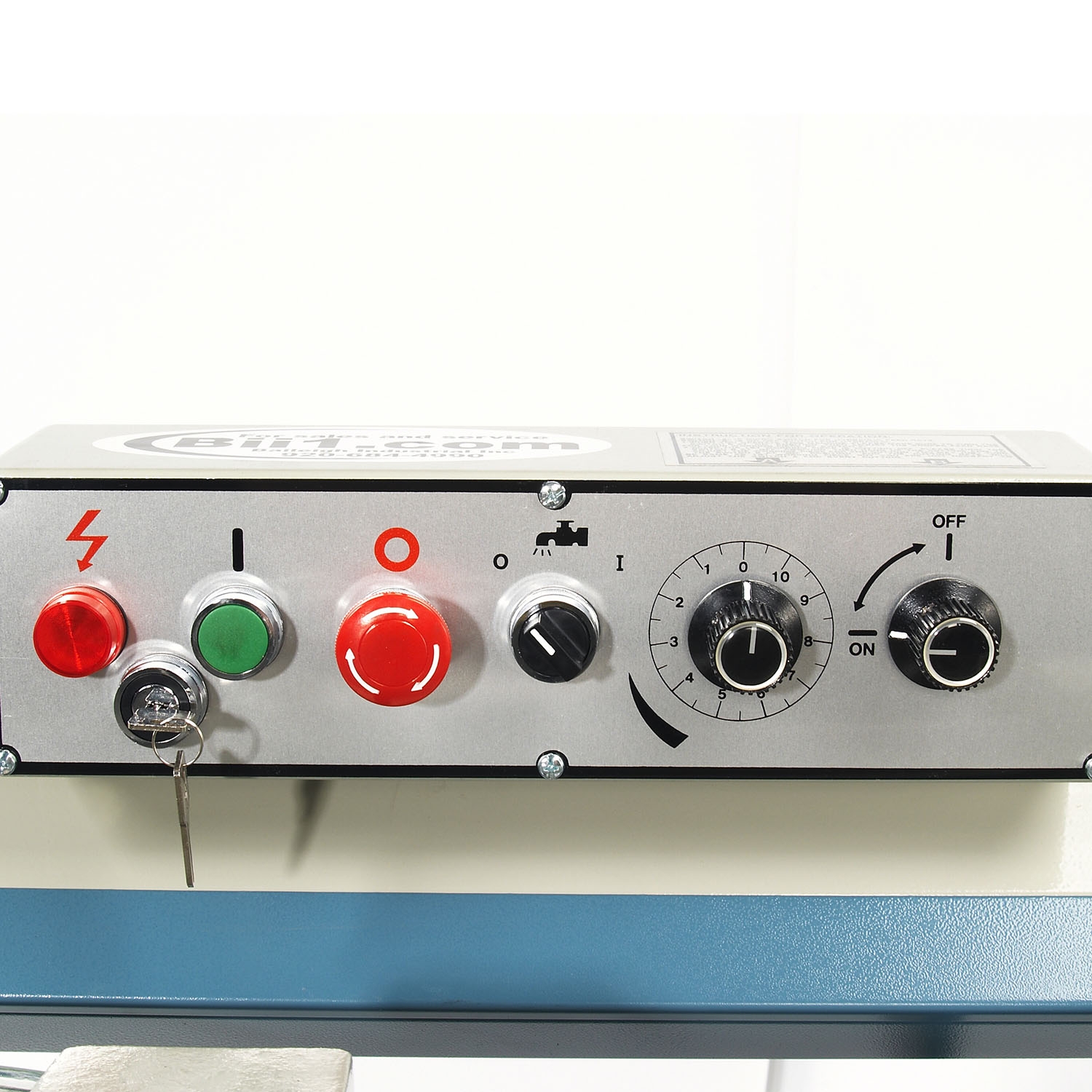

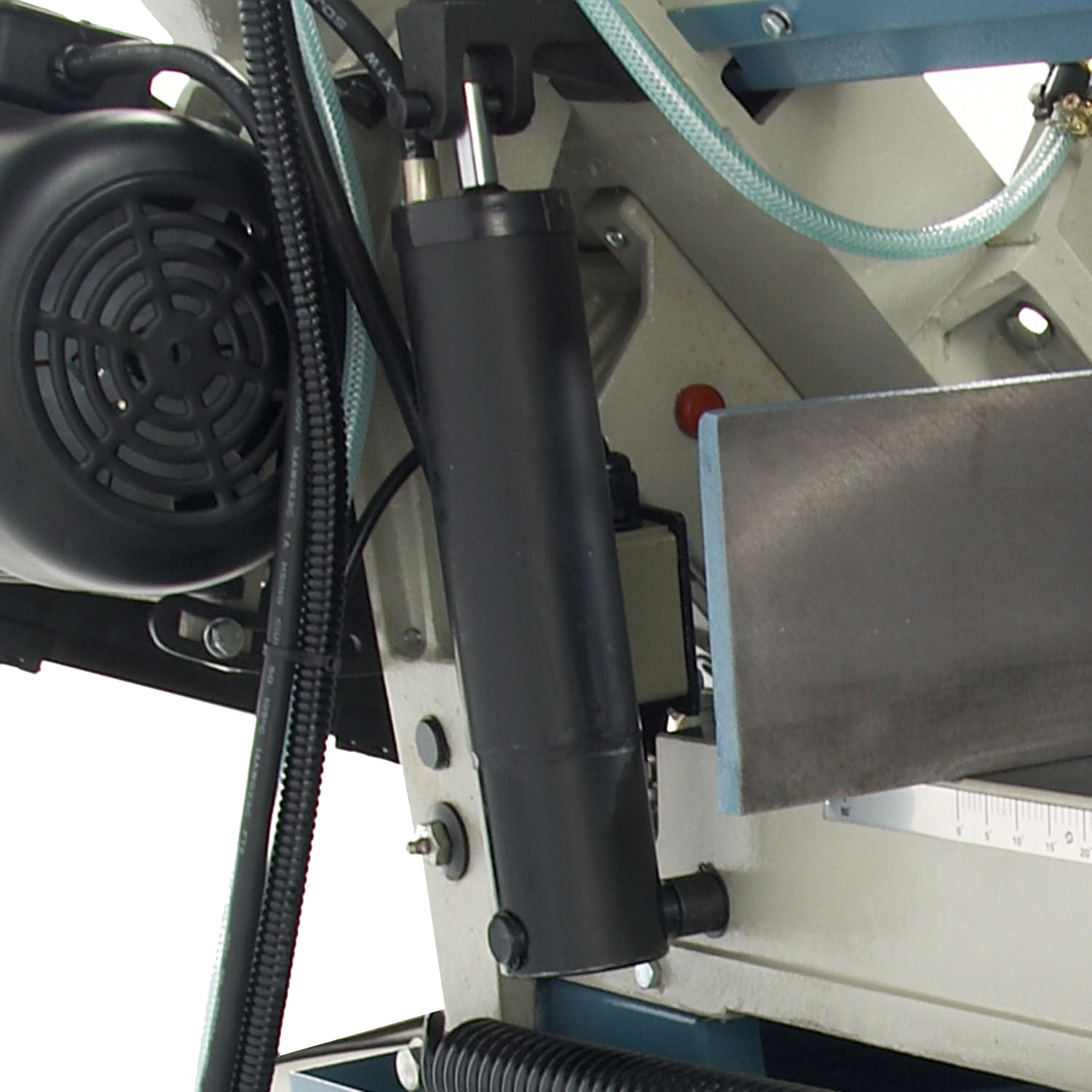

- Hydraulic descent pressure controlled by a panel located on top of the bow.
- Automatic shutoff feature at the end of the cut reduces operator effort and keeps your shop safe.

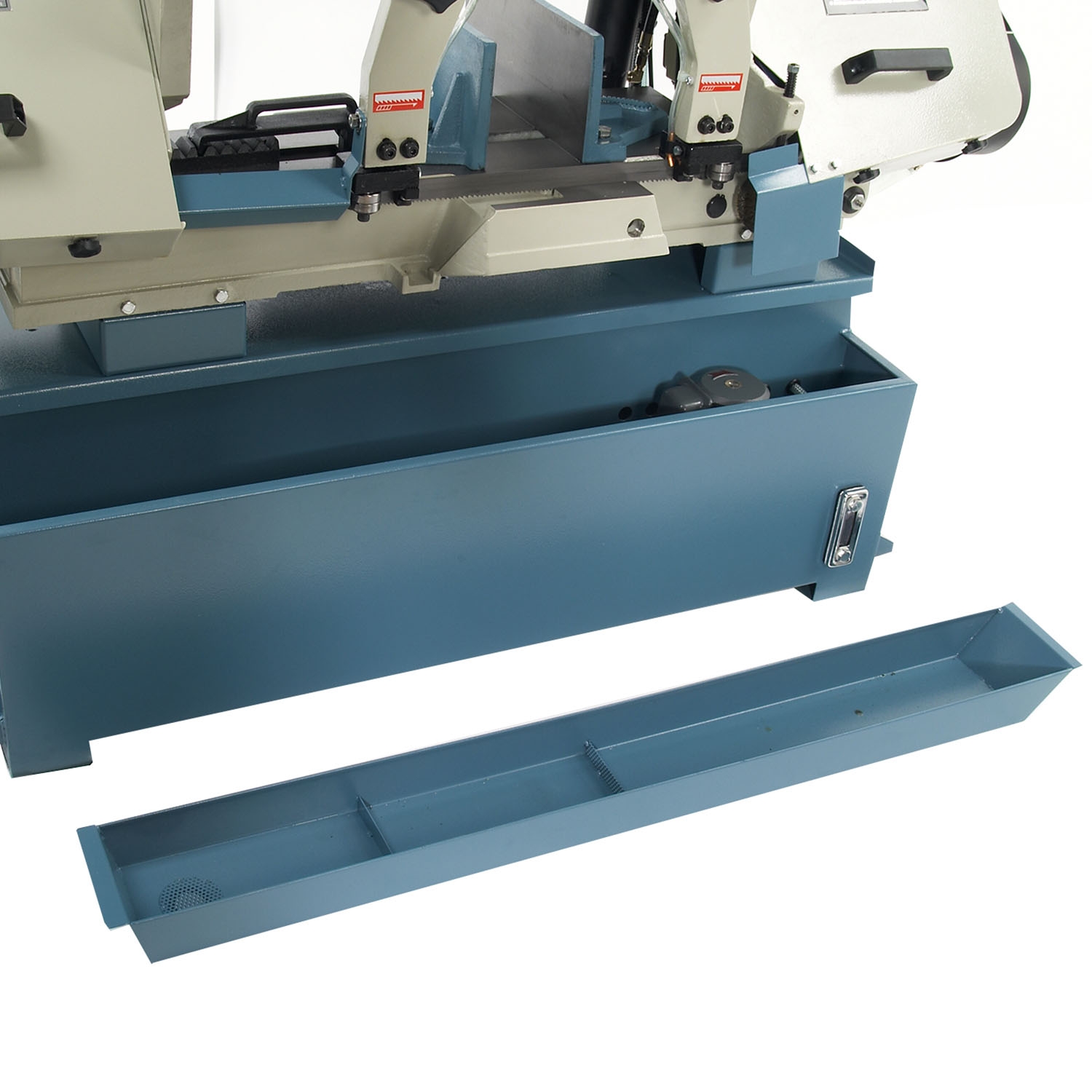

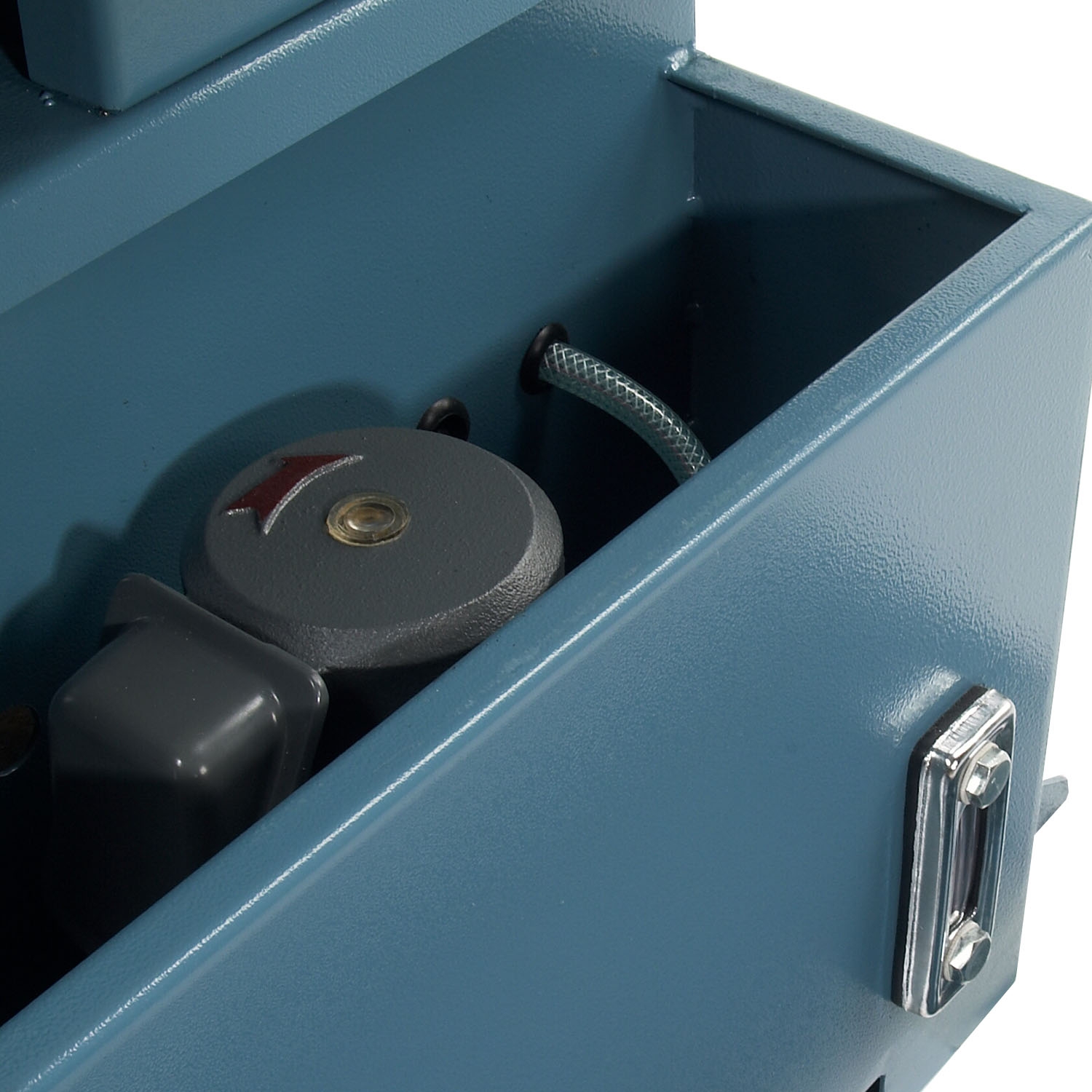

- Comes standard with a flood coolant system (which some companies charge extra for) to wash away metal chips, help blades last longer, and reduce expenses.
- Fully-welded steel base minimizes vibrations to deliver clean, accurate cuts and adds structural strength to the machine. This saw can take a lot of punishment!
SPECIFICATIONS
Item Number | BS-300M |
---|---|
Country of Manufacture | Taiwan |
Return | Manual |
Miter Adjustment | Vise |
Miter Angle | 0 – 45° |
Motor | 2 hp |
Capacity Rectangular 90° x 45° | 9.84″ x 16.33″ / 9.84″ x 7.50″ |
Capacity Round 90° x 45° | 9.84″ x 7.5″ |
Capacity Square 90° x 45° | 9.84″ x 7.5″ |
Table Height | 30.7″ |
Blade Guide | Roller |
Blade Size | 1″ x .035″ x 129.92″ |
Blade Speed (fpm) | 66 x 131 x 167 x 233 |
Descent Control | Hydraulic |
Drive | Belt x Pulley |
Power | 240V / 1-phase |
Shipping Weight | 845lbs |
Shipping Dimensions (Inches) | 69x44x48 |
* specifications subject to change without notice.
