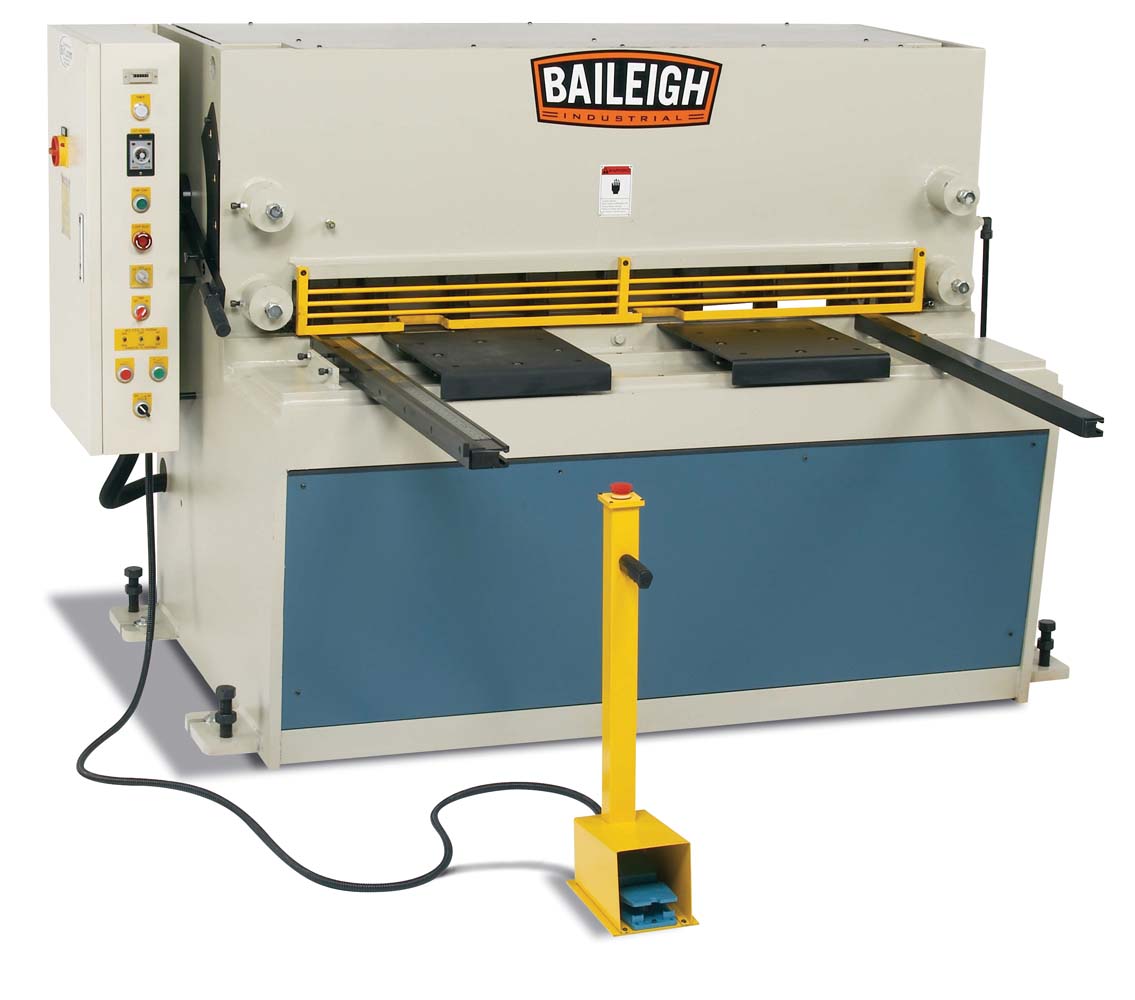

We build this hydraulic sheet metal shear with only the best components to ensure that it will last for many years. The adjustable blade gap and rake angle improve cut quality.

• 52” shearing length.
• ¼” mild steel maximum capacity.
• 15 hp motor runs on 220-volt 3-phase power.

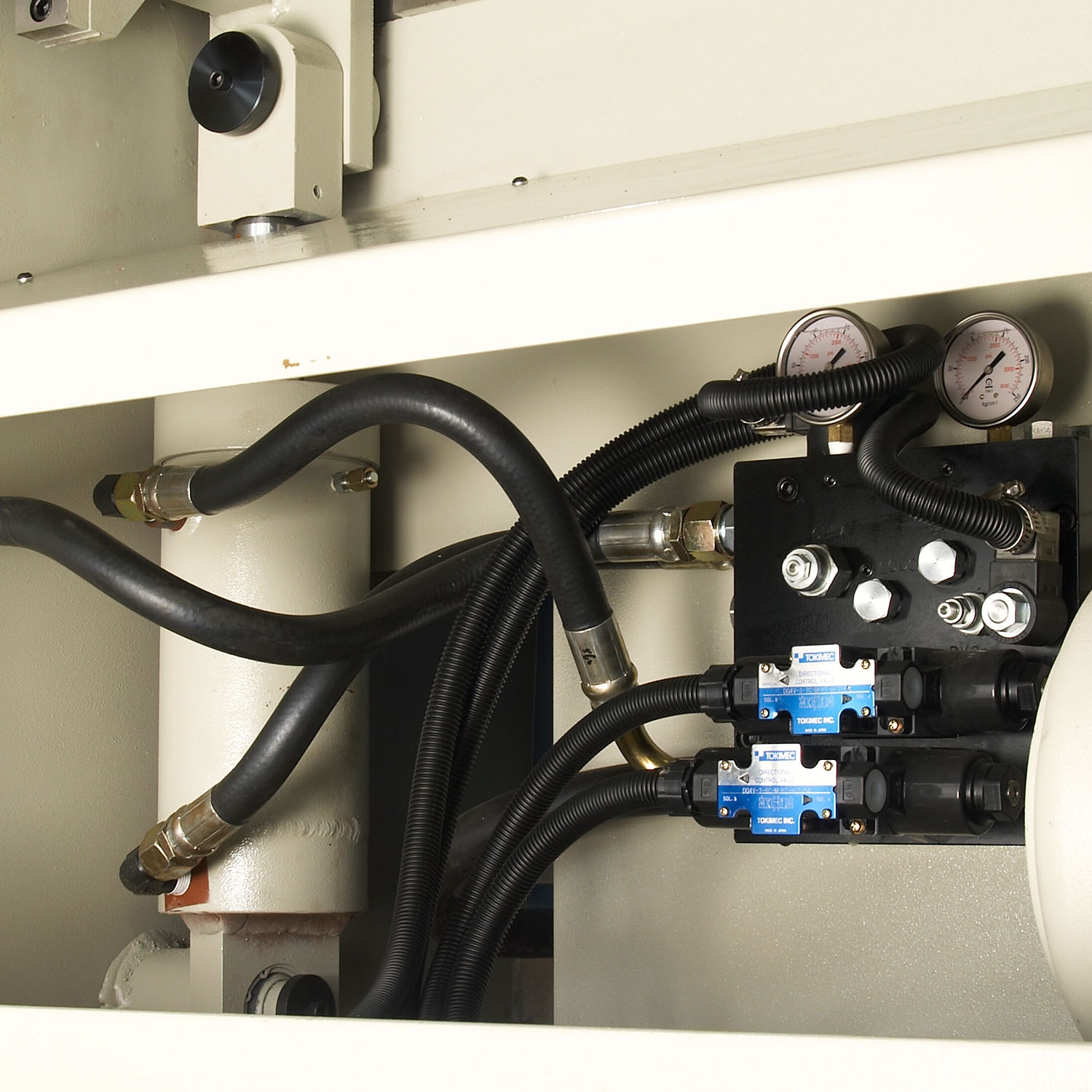

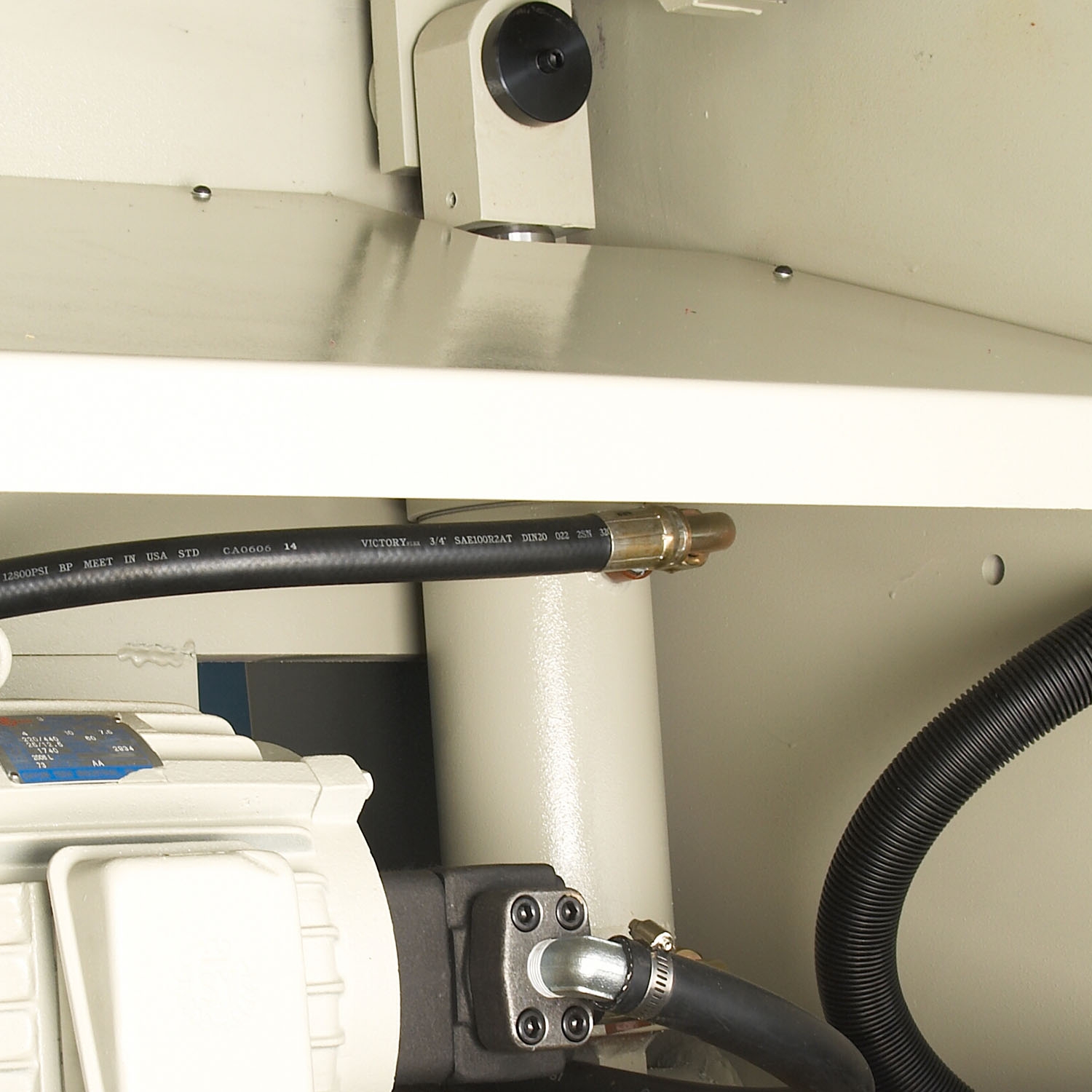

• Industrial-grade hydraulic system can take anything you throw at it.

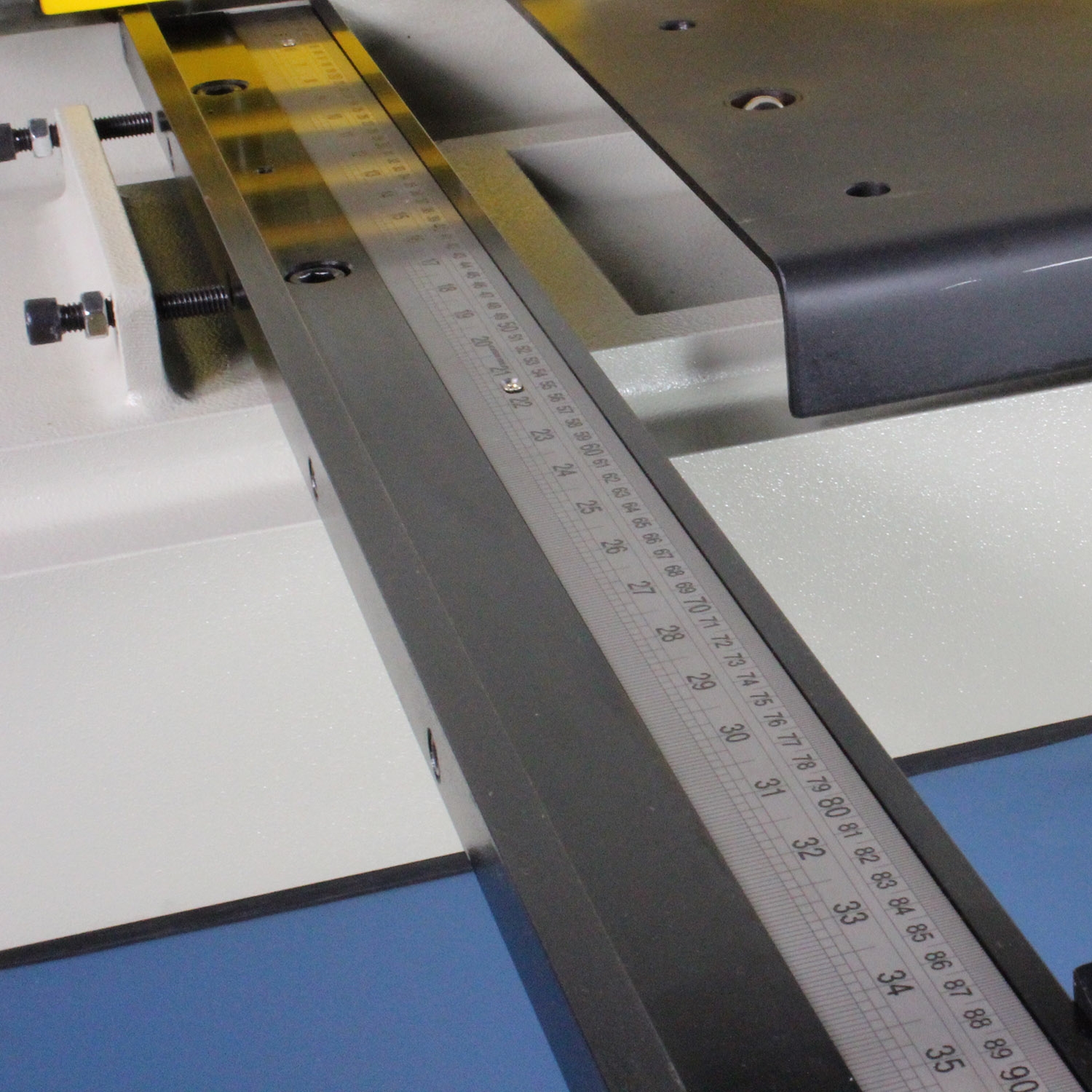

• Heavy support arms keep your material square to the blade.

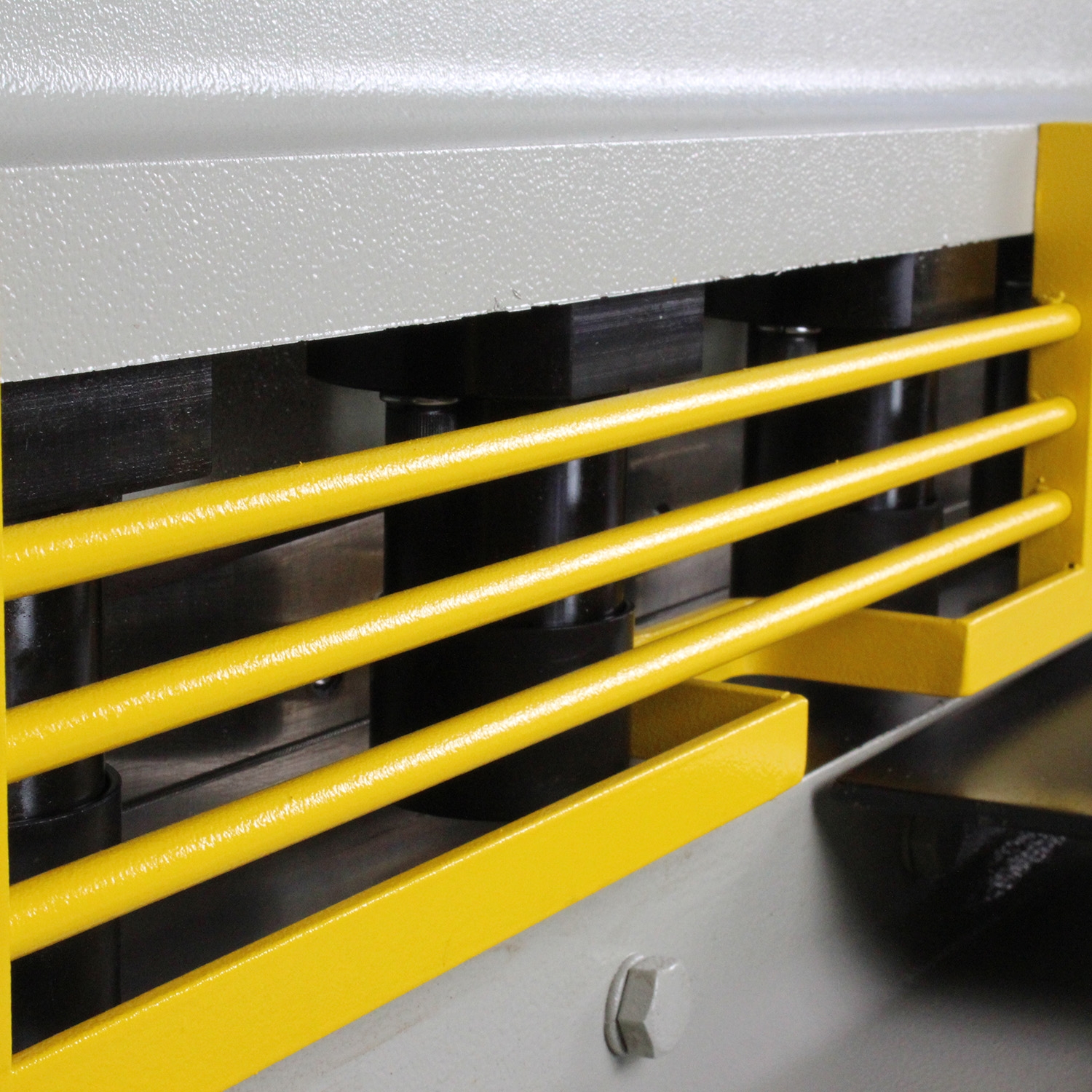

• Easy to operate: just press the foot pedal. Hydraulic hold-downs grab the material to ensure a straight cut, then the blade drops.
• Switch between 3 modes as needed:
  • Jog mode: Inching the blade down to the material.
  • Single cycle mode: One cut for one pedal push.
  • Automatic cycling mode: Continuously cutting for production runs.
• Control panel includes rake angle adjustment, jog/run/stop controls, and production counter.

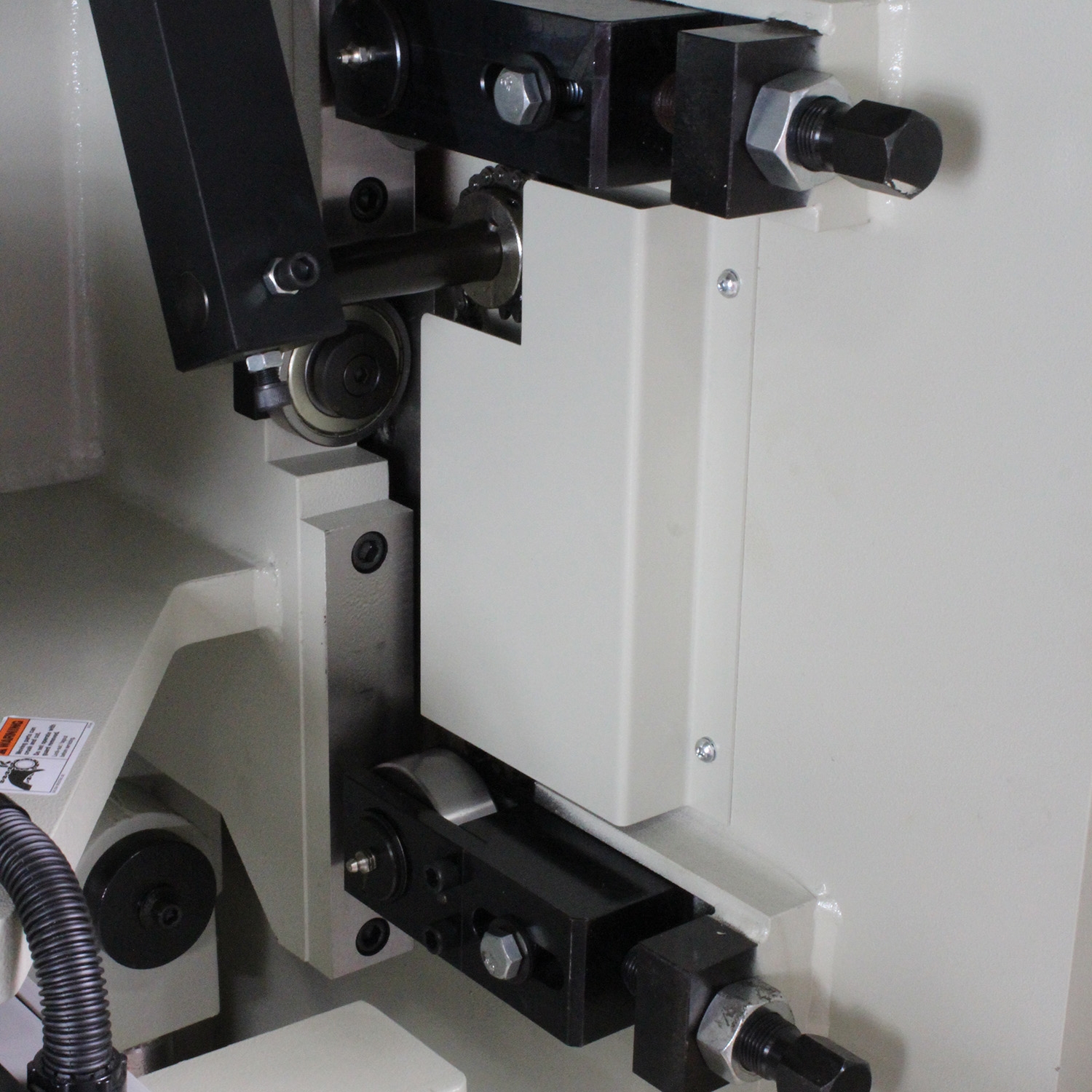

• Adjust the blade gap in seconds to prevent crimping or folding, especially when working on thinner materials.
• Adjustable rake angle can change for your material thickness, giving you cleaner cuts and reducing strain on the hydraulics.
• It’s simple to set the right rake angle: just hit a button, move the lever, and a light goes on when you reach the correct angle.
• Comes standard with high carbon chromium blades.
• 2-sided upper blades and 4-sided lower blades can be flipped and resharpened many times, saving you money.
• Fully welded plate steel frame ensures rigidity and prolongs blade life.
• Shadow light stretches the entire length of the web width for proper placement of the beginning of the cut, for those one-off shearing requirements.

SPECIFICATIONS

* specifications subject to change without notice.
