DESCRIPTION
The R-H60-HD hydraulic ring roller won’t flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs.
- Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
- Bends up to 2” square x .120” wall tubing and 2.5” schedule 40 pipe, among other materials.
- All 3 rolls turn on industrial grade hydraulic motor.
- Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.
- Digital readout with programmable stop controls upward and downward roll position for easy repeatability.

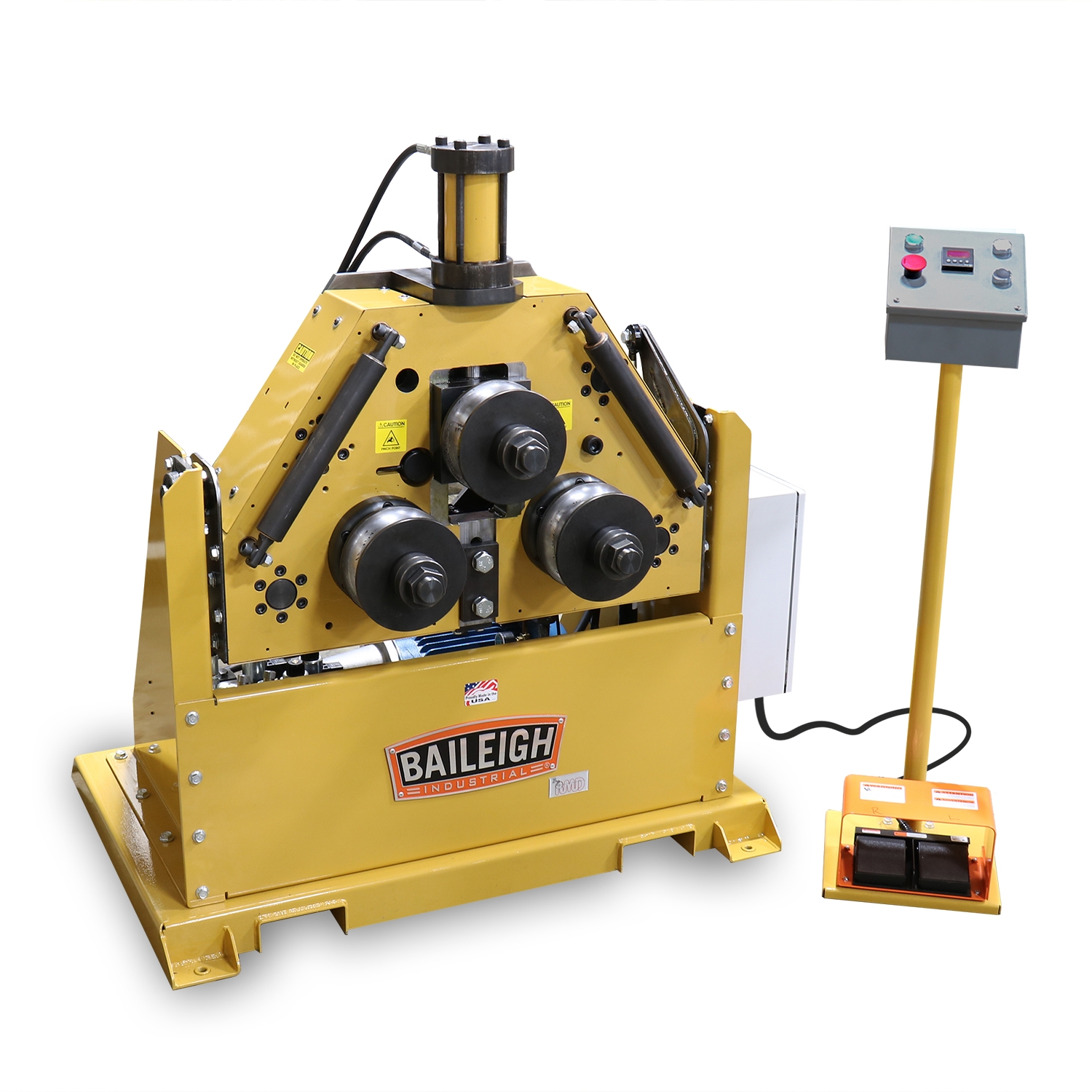

- Operator podium includes foot pedal, allowing you to stop and start the machine with ease.

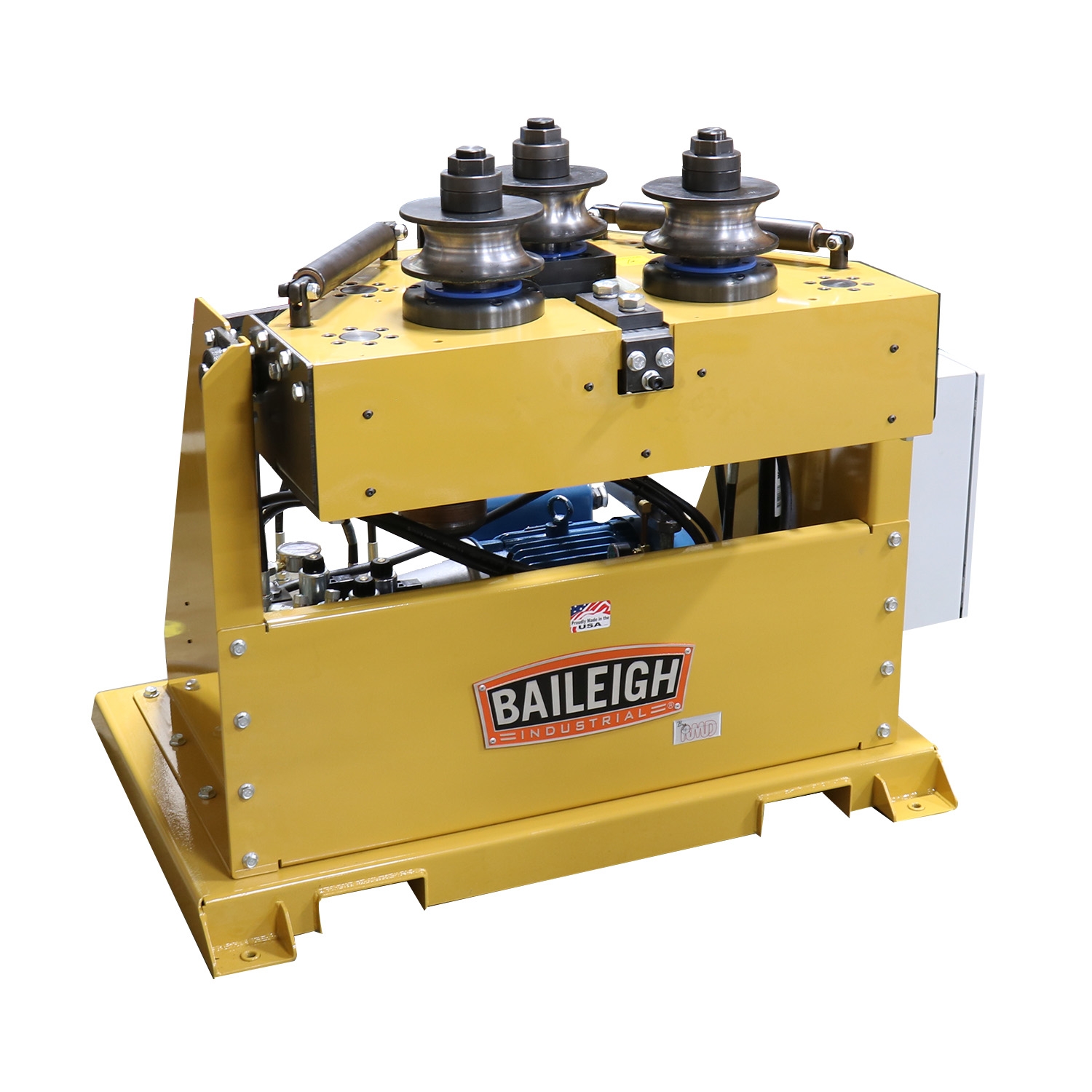

- You can safely tip this pipe bender backward into a horizontal position with its unique hydraulic tipping system when rolling larger diameters.
- Steel plate frame adds strength to the machine and minimizes flex.
SPECIFICATIONS
| Item Number | R-H60-HD |
|---|---|
| Country of Manufacture | United States |
| Motor Hp | 5 |
| Driven Rolls | 3 |
| Roll Adjustment | Hydraulic |
| Pipe Capacity | Size: 2.5″ (sch. 40) / Min. Dia.: 48″ |
| Round Tube Capacity | Size: 2.75″ (.083″) / Min. Dia.: 60″ |
| Square Tube Capacity | Size: 2″ (.120″) / Min. Dia.: 51″ |
| Solid Round Capacity | Size: 1.5″ / Min. Dia. 28″ |
| Flat Bar Easy Way | Size: 4″ (.75″) / Min. Dia. 28″ |
| Flat Bar Hard Way | Size: 3.25″ (.375″)/ Min. Dia.: 32″ |
| Angle Iron Capacity | Size: 2″ (.250″)/ Min. Dia.: 36″ |
| Shaft Diameter | 2.36″ |
| Shaft Center Distance Lower Rolls | 9.562″ |
| Lower Roll Dia. | 5.827″ |
| Pinch | Single |
| Power | 220V Single Phase |
| Shipping Weight | 1,188 lbs. |
| Material Type | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| Shipping Dimensions (Inches) | 60″ x 44″ x 68″ |
* specifications subject to change without notice.
